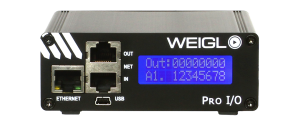

Weigl Pro I/O Analog 8

  • Weigl Pro I/O Analog 8
  • Weigl Pro I/O Analog 8
    • Weigl Pro I/O Analog 8
    Weigl Pro I/O Analog 8

Weigl Pro I/O Analog 8

Brand:Weigl
Product Code:Weigl Pro I/O Analog 8
Availability:Pre-Order
  • £0
  • Ex Tax: £0

Please call or email for latest prices on Weigl Control Products


Pro I/O interfaces are network devices for controlling and interfacing with many types of external equipment. Pro I/O’s are extremely flexible in handling different input signals and in processing to device-specific outputs. They support a variety of industry standard lighting and industrial show control protocols, enabling control of animatronics, mechanical action equipment, theatrical lighting and environmental lighting controls within the same show control environment.

Pro I/O’s are designed to offer powerful features in a small form factor. This set of interface devices delivers many options to fit your installation requirements. The integration of analog and digital PWM, contract closure outputs, standard ArtNet and DMX gives you the opportunity to expand the capabilities of the ProCommander Series, VenueMagic SC+ anywhere on a regular network system.


Weigl Pro I/0 Analog 8





Features

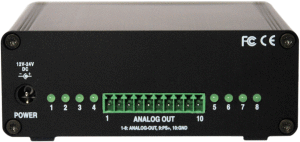

  • 8x 0-10V analog outputs
  • Optional -10/+10V or 4-20ma outputs
  • Up to 300mA per output channel peak
  • 50mA output driver
  • On screen level display for each output
  • DMX/ArtNet read-in for DMX to analog conversion
  • Short circuit protection

    Common Features Among all Pro I/O Units

    • Ethernet connection
    • 2x RS232 connection
    • USB connection
    • RS485 in/out for daisy chain connection or RS485 driven systems
    • Power supply over daisy chain connectors
    • ArtNet support
    • 24 character alpha numeric display for operation information
    • Software configurable
    • Extensive ASCII-protocol for a wide range of control options
    • Hardware interface for any kind of pc-related control programs
    • Separate power supply with a wide range of input voltage (12V-24V)
    • 19” rack mount adapter available
    • Din-rail mount available
